TSR4000 Automated Rail Weighing Indicator
Total control of dynamic rail weighing. Wheel, axle, bogie, wagon and whole-train weights, with automatic alarms for overspeed, overcapacity and imbalance in both directions.
TSR4000 Automated Rail Weighing Indicator
Total control of dynamic rail weighing. Wheel, axle, bogie, wagon and whole-train weights, with automatic alarms for overspeed, overcapacity and imbalance in both directions.
An Indicator Designed for Dynamic Rail Weighing
The TSR4000 digital weight indicator is purposely designed for dynamic rail weighing with in-track transducers or conventional load-cell weighbridges, offering superior accuracy and performance and turning raw wheel forces into precise, actionable data.
-
OIML R106 accuracy classes 0.2, 0.5, 1 and 2
-
Weighs uni- or bi-directionally at 0–110 km/h
-
Automatic alerts: overspeed, overcapacity, imbalance
-
Reports wheel, axle, bogie, wagon and train weights
-
Units in tonnes, tons, kilograms and pounds
Technical Highlights
| Modes | Automatic / Semi-auto / Manual |
| Control | Local or remote |
| Consist | Up to 999 vehicles |
| Speed | 0–110 km/h |
| Calibration | Static & dynamic, front panel |

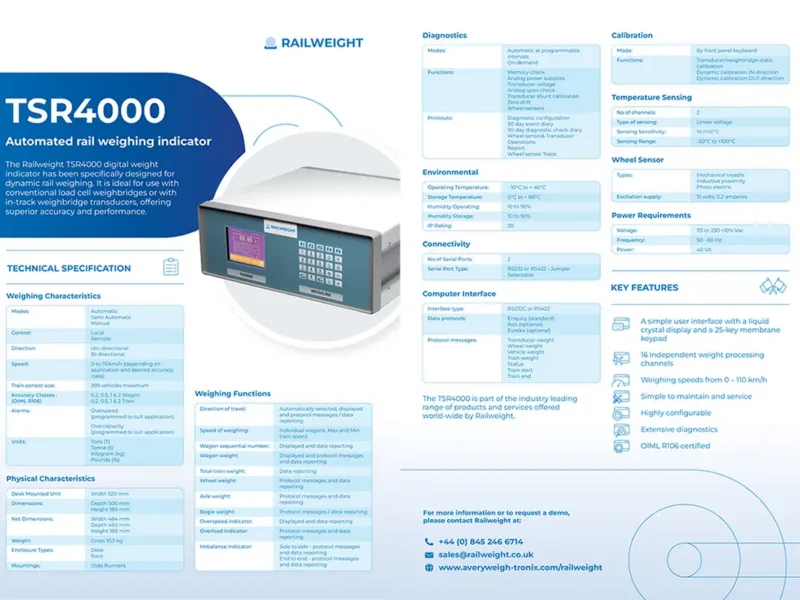

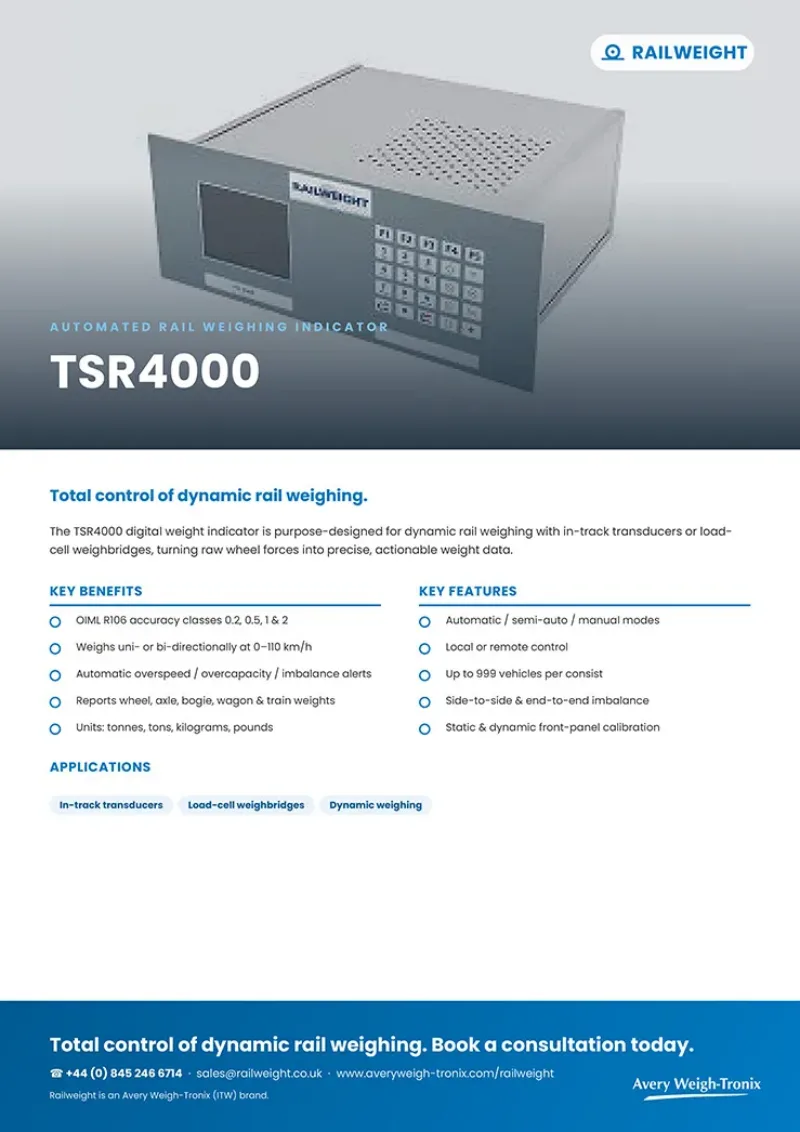

Download Railweight TSR4000 Spec Sheet and Brochures
Download Railweight TSR4000 Spec Sheet and Brochures
How Automated Dynamic Train Weighing Works
Diagnostics and Calibration Built In
The TSR4000 runs diagnostics automatically at programmable intervals or on demand: memory check, analogue power supplies, transducer voltage, analogue span check, transducer shunt calibration, zero drift and wheel sensors.
It prints its diagnostic configuration, a 90-day event diary, a 90-day diagnostic check diary, a wheel sensor and transducer operations report and a wheel sensor trace — which is exactly what an engineer needs when a system is questioned.
Calibration is performed from the front panel keyboard and covers transducer and weighbridge static calibration plus dynamic calibration in both the IN and OUT directions. Two temperature sensing channels track ambient conditions across a −50 to +100 °C range.
Railweight TSR4000 Application and Benefits
Where TSR4000 is used
- Dynamic rail weighing with in-track weighbridge transducers such as Streamline
- Dynamic rail weighing with conventional load cell weighbridges
- Legal-for-trade wagon and whole-train weighing for commercial invoicing
- Overload, overspeed and imbalance monitoring in yards and on mainline
- Unattended weighing points reporting to a central computer
- Workshop and depot weighing where manual and semi-automatic modes are required
What you get as standard
- A simple user interface with a liquid crystal display and 25-key membrane keypad
- 16 independent weight processing channels
- Weighing speeds from 0 to 110 km/h
- Simple to maintain and service
- Highly configurable
- Extensive diagnostics with printed event and check diaries
- OIML R106 certified
Automated Rail Weighing Frequently Asked Questions
Short and Precise Answers to Gathering Accurate Rail Freight Date
The TSR4000 supports OIML R106 accuracy classes 0.2, 0.5, 1 and 2 for both wagon weighing and whole-train weighing, so the system can be matched to the commercial or regulatory requirement rather than over-specified.
Yes. The TSR4000 is designed for use with conventional load cell weighbridges as well as in-track weighbridge transducers, which makes it a common choice for upgrading an existing rail weighing installation.
The TSR4000 provides side-to-side and end-to-end imbalance indication through protocol messages and data reporting, alongside overload and overspeed indicators, so an imbalanced wagon is flagged as it is weighed.
Calibration is carried out from the front panel keyboard and covers transducer and weighbridge static calibration plus dynamic calibration in both the IN and OUT directions. Railweight provides static and dynamic calibration worldwide.
The TSR4000 handles a train consist of up to 999 vehicles, with automatic wagon sequential numbering, individual wagon speeds and maximum and minimum train speed reporting.
