Performed through the front panel keyboard and supports transducer and weighbridge static calibration, along with dynamic calibration for both IN and OUT directions to ensure accurate and reliable weighing performance.

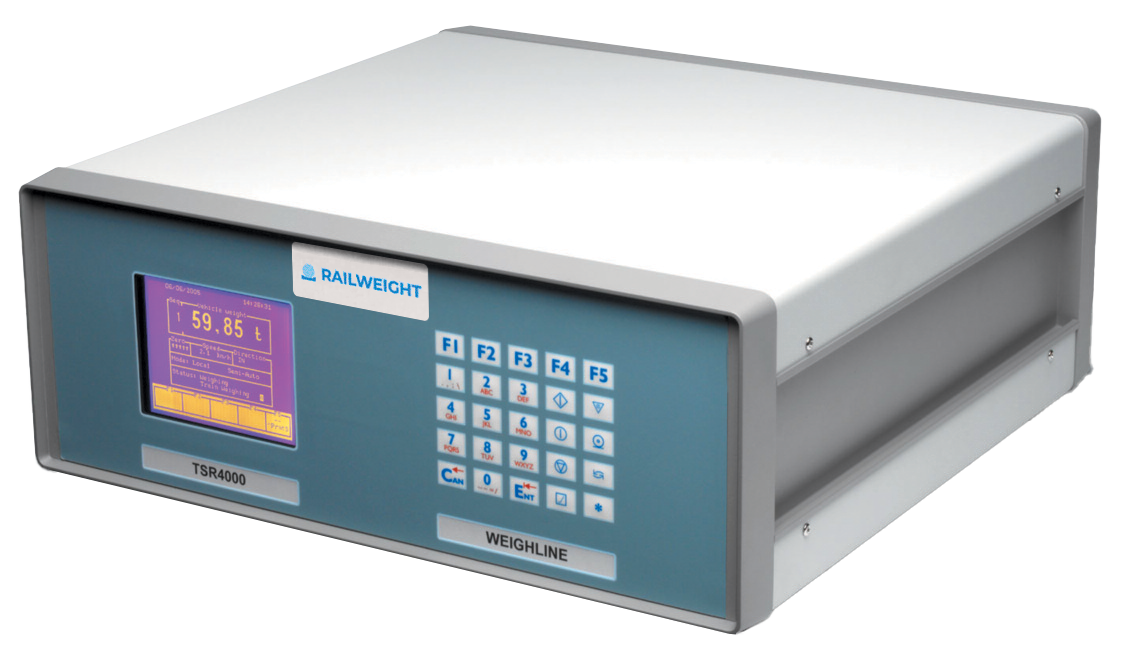

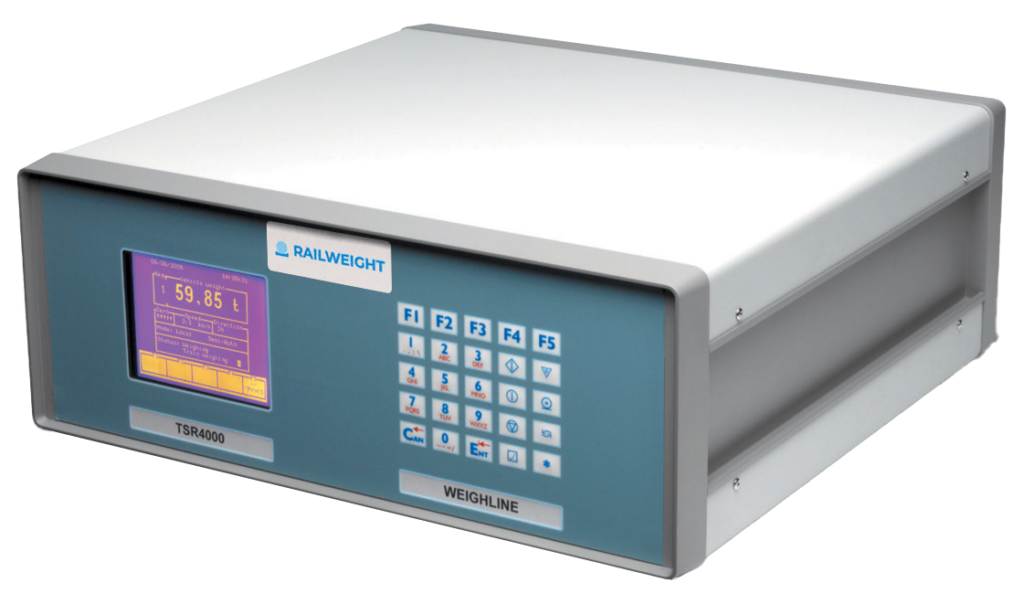

TSR4000
Automated rail weighing indicator
The Railweight TSR4000 digital weight
indicator has been specifically designed for
dynamic rail weighing. It is ideal for use with
conventional load cell weighbridges or with
in-track weighbridge transducers, offering
superior accuracy and performance.
Overview
The TSR4000 is part of the industry leading
range of products and services offered
world-wide by Railweight.
Features:
The TSR4000 features two temperature sensing channels using linear voltage sensing technology with a sensitivity of 10 mV/°C and an operating sensing range from -50°C to +100°C.
The system supports multiple wheel sensor types including mechanical treadle, inductive proximity, and photo electric sensors, with a 15-volt, 0.2-amp excitation supply.
The TSR4000 operates on 115V or 230V AC power at 50–60 Hz with a total power consumption of 40 VA.
Designed for industrial environments, the TSR4000 operates within temperatures of -10°C to +40°C and supports humidity levels from 10% to 90%, with an IP20 protection rating.
The system includes two serial ports with jumper-selectable RS232 or RS422 communication support for flexible integration.
The TSR4000 supports RS232C and RS422 communication interfaces with configurable enquiry, Asis, and Eureka data protocols, enabling reporting for transducer weight, wheel weight, vehicle weight, train weight, and operational status data.
Specifications
Modes
Automatic / Semi Automatic / Manual
Direction
Uni-directional / Bi-directional
Speed
0–110 km/h
Train Capacity
999 vehicles
Accuracy Classes
0.2 / 0.5 / 1 / 2
Units
Tons, kg, lb
Desk Mounted Unit
Width 520 mm
Dimensions
Depth 500 mm, Height 180 mm
Net Dimensions:
Width 484 mm, Depth 460 mm, Height 180 mm
Weight
Gross 10.5 kg
Enclosure Types
Desk, Rack
Mountings
Slide Runners
Range
Wire sizes from 3/16” (4.75 mm) up to 1.0” (25.4 mm)
Memory
Up to 255 logs
Units of Measure
lbf, kgf & Newtons
Resolution
Low / med / high (5000 resolutions)
Data Export
RS232
Battery
2 x AA battery’s with 120+ hours life (backlight off )
Size
10 x 23 x 3” (25 x 59 x 8 cm)
Recalibration
Every 12 months
Why TSR4000?
- A simple user interface with a liquid
crystal display and a 25-key membrane
keypad - 16 independent weight processing
channels
- Weighing speeds from 0 – 110 km/h
- Simple to maintain and service
- Highly configurable
- Extensive diagnostics
- OIML R106 certified
